In industries where cryogenic gases such as LNG (Liquefied Natural Gas), LOX (Liquid Oxygen), and LIN (Liquid Nitrogen) are commonly used, selecting the right vaporization method is crucial. Vaporization ensures that these liquids are converted into gas for a variety of applications, including fuel distribution, industrial processes, and medical use.

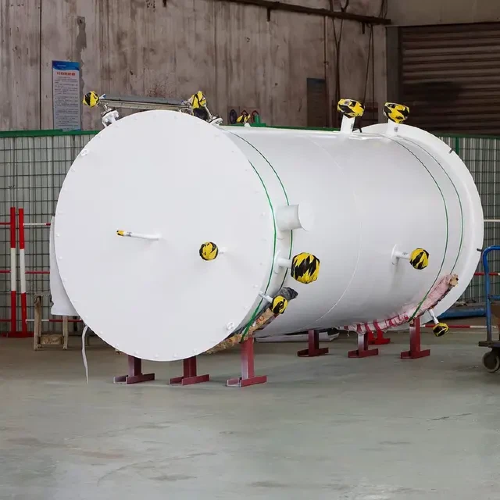

A Water Bath Vaporizer is one of the most reliable and efficient methods of vaporizing cryogenic liquids. This article will guide you through the factors to consider when choosing the right Water Bath Vaporizer for your business. We will explore the key features, considerations for different industries, sizing, installation, maintenance, and vendor selection to ensure you select the best vaporization system to meet your operational needs.
1. Understanding the Key Features of Water Bath Vaporizers
1.1 Heat Transfer Efficiency
One of the most significant advantages of Water Bath Vaporizers is their superior heat transfer efficiency. The water in the bath acts as an excellent heat medium, ensuring that the cryogenic liquid quickly and evenly absorbs heat to vaporize into gas. This high thermal conductivity allows Water Bath Vaporizers to vaporize large volumes of cryogenic liquid rapidly and efficiently.
Water Bath Vaporizers outperform many other methods due to the highly efficient thermal conductivity of water, which ensures that the vaporization process is consistent and reliable. This makes them ideal for large-scale operations requiring continuous vaporization.
1.2 Flow Rate and Pressure Capabilities
Another essential feature to consider when selecting a Water Bath Vaporizer is its flow rate and pressure capabilities. These vaporizers can be tailored to handle a wide range of flow rates and pressures, ensuring that they can meet the specific needs of your operation.
Flow Rate |
Pressure Range |
Application Suitability |
1,000 – 80,000 Nm³/h |
0.4 MPa to 60 MPa |
Suitable for large-scale LNG, oxygen, and industrial gas supply systems. |
Low to Medium |
Low to High |
Best for smaller operations with flexible demands. |
Water Bath Vaporizers can be designed to meet both low and high-flow demands, making them suitable for both small and large-scale applications. Whether your business requires a high volume of gas or operates at varying demand levels, selecting the right vaporizer based on your specific flow rate and pressure needs will ensure optimal performance.
1.3 Customization and Size Options
Water Bath Vaporizers come in various sizes, allowing for customization based on your operational needs. Whether you're operating a small fueling station or a large industrial facility, a vaporizer can be chosen to match your gas demand and capacity requirements.
For larger applications, high-capacity vaporizers can be configured to handle more significant volumes of cryogenic liquids, while smaller, compact units can be ideal for limited spaces or smaller operations.
2. Factors to Consider When Choosing a Water Bath Vaporizer for Your Business
2.1 Industry-Specific Requirements
Different industries have varying needs when it comes to vaporization. Some sectors require high-capacity vaporizers capable of supplying large volumes of vaporized gas continuously, while others may need smaller, more flexible systems.
LNG Stations
For LNG stations, where large amounts of natural gas need to be vaporized and distributed, Water Bath Vaporizers are ideal. Their ability to handle high flow rates and deliver consistent vaporization makes them perfect for fueling stations and natural gas processing facilities.
Medical Gas Supply
In medical gas supply, Water Bath Vaporizers are used for converting liquid oxygen into gas. These systems need to operate reliably and safely, as the gas is crucial for patient care. Ensuring that the vaporizer can provide stable and continuous gas output is key in healthcare settings.
Industrial Gas Supply
Industries such as chemical plants and food processing require a consistent supply of cryogenic gases like nitrogen, oxygen, and argon. A Water Bath Vaporizer is a reliable choice for these industries, as it can provide continuous vaporization for various industrial processes.
2.2 Environmental Conditions
Ambient temperature and environmental conditions play a significant role in the selection of a Water Bath Vaporizer. Water Bath Vaporizers are generally better suited for environments with consistent temperatures as water bath systems depend on the thermal stability of the water.
For outdoor applications, especially in cold climates, it is important to ensure that the vaporizer is equipped with proper insulation or an indoor setup to maintain the water temperature within the optimal range.
2.3 Energy Efficiency and Cost
The energy efficiency of a vaporizer is a crucial factor in its operational cost. Water Bath Vaporizers are more energy-efficient than many other vaporization methods due to the high thermal conductivity of water. This allows them to use less energy to vaporize large amounts of cryogenic liquid, reducing operational costs over time.
Table 2: Energy Efficiency Comparison
Vaporizer Type |
Energy Efficiency |
Operational Costs |
Energy Source |
Water Bath Vaporizer |
High |
Low |
Water, minimal electricity for controls |
Electric Vaporizer |
Moderate |
High |
Electricity |
Air-Heated Vaporizer |
Low |
Moderate to High |
Ambient air and electricity |
Water Bath Vaporizers generally provide lower operational costs in the long term, especially for large-scale operations.
2.4 Safety and Compliance
Safety is paramount in cryogenic applications, as improperly managed vaporizers can lead to dangerous situations. Water Bath Vaporizers come equipped with safety features such as pressure relief valves, temperature monitoring systems, and automatic shutoffs to ensure safe operation.
When selecting a vaporizer, ensure that it complies with industry regulations and standards, such as ASME and ISO, to meet safety requirements for your business.
3. How to Size a Water Bath Vaporizer for Your Business
3.1 Understanding Your Gas Consumption Needs
Before selecting a vaporizer, it’s crucial to estimate your gas consumption needs. Determine your average daily usage and account for peak demand to select a vaporizer that can meet these requirements consistently.
For example, if your business has variable demand, you may need a vaporizer that can handle fluctuations in gas usage without compromising performance.
3.2 Determining Vaporizer Size and Capacity
After understanding your consumption, the next step is selecting the appropriate vaporizer size. This will depend on:
Average Daily Gas Requirement: Calculate your business’s daily consumption in standard cubic meters per hour (Nm³/h).
Peak Demand: Ensure that the vaporizer can handle sudden surges in demand, particularly for high-volume operations.
For example, a business with high daily consumption may require a larger Water Bath Vaporizer with the capacity to handle up to 80,000 Nm³/h.
4. Installation and Maintenance Considerations
4.1 Installation Requirements
When installing a Water Bath Vaporizer, ensure that there is adequate space for the water tank, heat exchanger, and necessary connections. Consider the water supply and electrical connections, as well as access for maintenance.
For outdoor installations, ensure that the vaporizer is weatherproofed to prevent any environmental factors from affecting its performance.
4.2 Ongoing Maintenance and Support
Water Bath Vaporizers are low-maintenance systems, but regular checks are required to ensure optimal operation. Regular tasks include:
Monitoring water levels: Ensure the water bath remains at the required level.
Inspecting temperature control systems: Regularly check the temperature sensors and regulators.
Cleaning the heat exchanger: Prevent build-up that could affect heat transfer efficiency.
At NOBLEST EQUIPMENT TECH LIMITED, we offer comprehensive maintenance services to ensure your Water Bath Vaporizer operates at peak performance.
5. Choosing the Right Vendor for Your Water Bath Vaporizer
5.1 Evaluating Vaporizer Manufacturers
When choosing a manufacturer, consider factors such as:
Product Quality: Look for manufacturers with a proven track record in supplying high-quality vaporizers.
Customization Options: Ensure that the vendor can provide customized solutions tailored to your business’s specific needs.
Industry Expertise: Work with companies that have experience in your specific industry, whether it’s LNG, medical gases, or industrial gas supply.
5.2 Understanding Warranty and Service Contracts
Look for vendors that offer warranties and service contracts, ensuring that you have ongoing support for installation, maintenance, and troubleshooting. At NOBLEST EQUIPMENT TECH LIMITED, we provide full support throughout the vaporizer’s lifecycle, from installation to after-sales service.
6. Conclusion
Choosing the right Water Bath Vaporizer involves carefully assessing your business's gas consumption needs, energy efficiency, safety features, and customization options. It’s essential to match the vaporizer's flow rate and pressure requirements with your operational needs to ensure consistent performance.
For industries requiring high-volume gas supply and reliable performance, Water Bath Vaporizers are the ideal choice. Their efficiency and capacity make them perfect for large-scale applications. On the other hand, for smaller operations with less demanding requirements, Ambient Air Vaporizers may offer a more cost-effective solution. However, Water Bath Vaporizers stand out with their superior efficiency, long-term reliability, and energy savings.
At NOBLEST EQUIPMENT TECH LIMITED, we specialize in delivering high-quality Water Bath Vaporizers tailored to meet your specific needs. Our expert team is here to help you choose the right system based on your business requirements. Whether you need a customized vaporizer solution or ongoing technical support, we are committed to providing you with the best possible service. Contact us today to learn more about how we can assist with your vaporization needs.
7. FAQ
1. How do I determine the right size for a Water Bath Vaporizer?
Consider your daily gas consumption and peak demand to select a vaporizer with the right flow rate and pressure capabilities. Consulting with an experienced manufacturer can help you choose the best vaporizer size for your needs.
2. What industries use Water Bath Vaporizers?
Water Bath Vaporizers are used in LNG stations, medical gas supply, chemical plants, food processing, and other industries that require efficient, high-volume vaporization.
3. How much maintenance do Water Bath Vaporizers require?
Water Bath Vaporizers are low-maintenance systems. Regular checks on water levels, temperature controls, and heat exchangers are sufficient to ensure optimal performance.
4. Are Water Bath Vaporizers environmentally friendly?
Yes, Water Bath Vaporizers are energy-efficient, reducing energy consumption and contributing to lower emissions compared to other vaporization methods.
5. Can Water Bath Vaporizers handle multiple types of cryogenic gases?
Yes, Water Bath Vaporizers can handle a wide variety of cryogenic gases, such as LNG, LOX, LPG, and CO2, making them versatile for multiple industries.
