In the ongoing quest for sustainable energy solutions, technology and innovation play pivotal roles in reshaping how we generate, distribute, and consume power. One key player emerging in this space is the water-bath vaporizer, a device that has found increasing applications in clean energy, particularly in handling liquefied gases like liquefied natural gas (LNG), hydrogen, and other alternative fuels. This article explores how water-bath vaporizers contribute to sustainable energy solutions, their working principles, types and their potential impact on the future of clean energy.
1. Understanding Water-Bath Vaporizers: How They Work

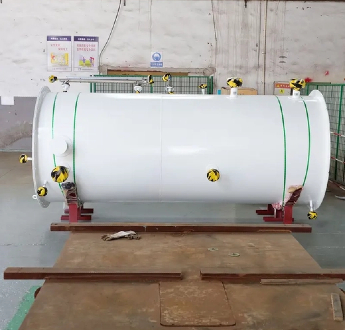

A water-bath vaporizer is a heat exchange device primarily used to convert liquefied gases, such as LNG, liquid nitrogen, or propane, into their gaseous state. The process involves the transfer of heat from a warm water bath to the liquid fuel, causing it to vaporize. Unlike other methods of vaporization, such as electric or ambient air vaporizers, water-bath vaporizers offer a controlled and efficient means of converting liquids into gases without relying heavily on external energy sources.
The working principle of a water-bath vaporizer is relatively simple:
1. Heat Transfer: The liquefied gas flows through a series of coiled tubes or heat exchangers immersed in a water bath. The water bath, heated either through natural gas burners or other heat sources, provides the energy required for vaporization.
2. Vaporization: As the liquid fuel passes through the tubes, it absorbs the heat from the water and changes into its gaseous form. The gas is then ready for distribution or use in industrial, commercial, or residential applications.
3. Temperature Control: A key advantage of water-bath vaporizers is their ability to maintain a stable temperature, ensuring that the gas produced is of consistent quality and pressure, which is essential for safe and efficient operation.
Water-bath vaporizers are widely used in industries where large volumes of gas are required at a consistent temperature and pressure, such as in chemical plants, energy production, and transportation. Their flexibility and reliability make them ideal for various applications, including the growing need for cleaner fuel solutions.
2.Types of Water-Bath Vaporizers
Water-bath vaporizers are essential devices used in various industries to convert liquefied gases into their gaseous states. They come in several types, each designed to meet specific needs and applications. Here are the main types of water-bath vaporizers:
1. Standard Water-Bath Vaporizers
These are the most common type of water-bath vaporizers. They consist of a tank filled with water and a series of coils or pipes through which the liquefied gas flows. The heat from the water bath causes the gas to vaporize. Standard water-bath vaporizers are versatile and can be used for various gases, including natural gas, propane, and butane.
2. High-Capacity Water-Bath Vaporizers
High-capacity water-bath vaporizers are designed for large-scale applications where high flow rates of vaporized gas are required. They are commonly used in industrial settings, such as chemical plants or large LNG facilities. These vaporizers often have larger tanks and more extensive heating systems to accommodate the increased demand for vaporization.
3. Natural Gas Water-Bath Vaporizers
These specialized water-bath vaporizers are specifically designed for vaporizing natural gas, particularly liquefied natural gas (LNG). They are often used in LNG receiving terminals and peak shaving facilities. Natural gas water-bath vaporizers ensure a consistent and reliable supply of vaporized natural gas, particularly during peak demand periods.
4. Hydrogen Water-Bath Vaporizers
As hydrogen becomes more prominent in the clean energy sector, hydrogen-specific water-bath vaporizers are emerging. These vaporizers are designed to handle the unique properties of hydrogen, such as its low boiling point and high diffusivity. They ensure safe and efficient vaporization of liquefied hydrogen for fuel cells and other applications.
5. Waste Heat Recovery Water-Bath Vaporizers
These vaporizers utilize waste heat from industrial processes or other sources to heat the water bath, making them more energy-efficient and environmentally friendly. By capturing and reusing waste heat, these systems can reduce operational costs and improve sustainability.
3. The Role of Water-Bath Vaporizers in LNG and Hydrogen Applications
3.1 LNG Vaporization
Liquefied natural gas (LNG) is increasingly recognized as a cleaner alternative to traditional fossil fuels like coal and oil. When burned, LNG emits fewer carbon emissions and pollutants, making it an important transitional fuel in the shift toward a more sustainable energy future. However, LNG must be vaporized before it can be used in power plants, transportation, or industrial applications.
Water-bath vaporizers are highly efficient at vaporizing LNG due to their ability to provide consistent and controlled heat. Unlike ambient air vaporizers, which rely on external environmental conditions, water-bath vaporizers can function in a wide range of climates and conditions, making them suitable for year-round operation. Additionally, the use of natural gas burners or waste heat from nearby industrial processes to heat the water bath can further improve the overall efficiency of the system.
Water-bath vaporizers also play a critical role in the peak shaving process, where stored LNG is vaporized and injected into natural gas pipelines during periods of high demand. This process ensures a steady supply of natural gas to consumers while reducing the reliance on more carbon-intensive fuel sources during peak periods.
3.2 Hydrogen as a Clean Fuel
Hydrogen is widely considered one of the most promising clean energy sources due to its high energy density and zero carbon emissions when used in fuel cells or combustion engines. However, similar to LNG, hydrogen is often stored and transported in liquefied form at extremely low temperatures. To utilize liquefied hydrogen in fuel cells or power generation, it must first be vaporized.
Water-bath vaporizers are well-suited for hydrogen vaporization, as they can provide the precise temperature control needed to safely and efficiently convert liquefied hydrogen into its gaseous form. The ability to vaporize hydrogen at a consistent rate without large energy inputs further enhances the sustainability of hydrogen as a clean fuel.
By incorporating water-bath vaporizers into hydrogen infrastructure, companies can reduce the energy costs associated with vaporization and improve the overall efficiency of hydrogen supply chains. This, in turn, supports the broader goal of reducing greenhouse gas emissions and achieving a zero-carbon energy system.
4. Advantages of Water-Bath Vaporizers in Clean Energy Systems
1. Energy Efficiency: Water-bath vaporizers are highly energy-efficient compared to electric vaporizers, which require significant amounts of electricity. By utilizing water as a medium for heat transfer, they can achieve high levels of efficiency while minimizing energy waste.
2. Consistency: The ability to maintain a stable and consistent temperature ensures that the gas produced is of high quality, which is critical for applications such as fuel cells, power plants, and industrial processes.
3. Environmental Impact: Water-bath vaporizers can be integrated with renewable energy sources or waste heat recovery systems, further reducing their environmental footprint. This aligns with the broader goals of decarbonizing the energy sector and reducing reliance on fossil fuels.
4. Versatility: These vaporizers can handle a wide variety of liquefied gases, including LNG, hydrogen, and ammonia, making them adaptable to different clean energy applications.
5. Safety: Water-bath vaporizers are designed with safety in mind, with built-in controls to prevent overheating and ensure safe operation. This is especially important when dealing with hazardous gases like hydrogen.
5.The Future Outlook
Looking ahead, the role of water-bath vaporizers in sustainable fuel solutions is likely to grow, particularly as the global energy landscape continues to shift toward cleaner and more efficient fuel sources. Innovations in vaporizer design, coupled with advances in renewable energy integration and waste heat recovery, will further enhance the efficiency and environmental performance of these systems.
6. Conclusion
Water-bath vaporizers are emerging as a critical technology in the transition to clean energy. Their ability to efficiently and reliably convert liquefied fuels like LNG and hydrogen into usable gases makes them an important component of sustainable fuel infrastructure. As the world moves toward a low-carbon future, the role of water-bath vaporizers in enabling the use of cleaner fuels will become increasingly important, helping to reduce greenhouse gas emissions, improve energy efficiency, and pave the way for a more sustainable energy system.
