In industries that deal with gases in liquid form—such as natural gas, propane, or ammonia—vaporizing these liquids into their gaseous state is an essential part of operations. One effective and widely used method to achieve this is through hot water circulating type vaporizers. These devices help convert liquid gases into gas by utilizing heated water, which transfers heat to the liquid to cause evaporation.
In this article, we’ll take a closer look at how these vaporizers work, why they’re important, and the benefits they offer in various industrial settings. Whether you’re involved in manufacturing, energy production, or transportation, understanding how hot water circulating vaporizers function can help improve efficiency and ensure safety.
What is a Hot Water Circulating Type Vaporizer?

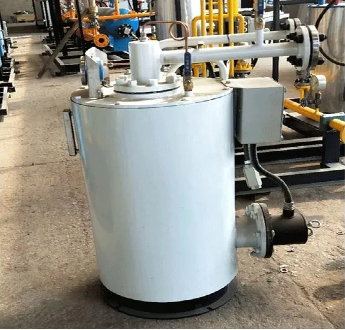

A hot water circulating type vaporizer is a device used to convert liquefied gases into their gaseous form by using hot water as the heat source. These vaporizers are typically used in industries that store or transport gases in their liquid state, which is more efficient and space-saving than storing gas in its natural gaseous form.
The vaporizer works by heating water, circulating it around a set of pipes or tubes that contain the liquefied gas. As the hot water flows around these pipes, it transfers heat to the liquid inside, causing it to evaporate and turn into gas. This gas is then ready for use in various industrial processes, such as power generation, heating, or as a fuel.
Key Components of a Hot Water Circulating Type Vaporizer
1. Heat Source: This is typically a boiler or heater that heats water to a specific temperature.
2. Water Circulation System: This system pumps the heated water through pipes surrounding the liquefied gas chamber.
3. Liquid Gas Chamber: This is where the liquefied gas is stored and heated. The gas is typically stored under pressure to keep it in liquid form.
4. Heat Exchanger: The heat exchanger facilitates the transfer of heat from the circulating water to the liquid gas. This is usually achieved through a series of coils or pipes that pass through the liquid gas chamber.
5. Control System: A control system monitors and regulates the temperature and pressure of both the hot water and the gas to ensure safe and efficient vaporization.
How Do Hot Water Circulating Type Vaporizers Work?
The working process of a hot water circulating vaporizer can be broken down into a few simple steps:
1. Heating the Water: First, water is heated by a boiler or heating system. The temperature of this water is controlled to ensure it remains at a consistent level, usually around 60°C to 90°C, depending on the type of gas being vaporized.
2. Circulating the Water: Once heated, the water is pumped through a system of pipes that surround the liquid gas container. The hot water flows continuously, ensuring a steady transfer of heat to the liquid gas.
3. Heat Transfer: As the hot water flows through the pipes, it transfers heat to the liquid gas stored in a heat exchanger. This process causes the temperature of the liquid gas to rise, which eventually leads to vaporization.
4. Vaporization: The heat from the water causes the liquefied gas to reach its boiling point, at which point it evaporates and becomes a gas. This gas can then be collected and used in the industrial process.
5. Re-circulation of Water: After the heat is transferred from the water to the gas, the cooler water is sent back to the heating system, where it is reheated and pumped through the system again. This circulation continues as long as gas needs to be vaporized.
Example of a Common Use: LPG Vaporization
Liquefied Petroleum Gas (LPG), which includes propane and butane, is often transported and stored in its liquid state. To use LPG as a fuel for heating or cooking, it needs to be vaporized back into its gaseous form. A hot water circulating vaporizer is an efficient way to accomplish this.
In this case, the liquid propane is pumped into the vaporizer’s heat exchanger, where hot water circulates around it. The heat from the water causes the propane to vaporize, and the resulting gas is then directed to the burners or equipment that need it. This process ensures a steady supply of gas without the need for high-pressure tanks or direct heating of the gas, which could be more dangerous.
Why Are Hot Water Circulating Vaporizers Important?
There are several reasons why industries use hot water circulating vaporizers for gas vaporization:
1. Energy Efficiency
One of the primary advantages of using hot water as the heat source is energy efficiency. Water has a high heat capacity, meaning it can absorb and transfer large amounts of heat with relatively small temperature changes. This makes hot water an excellent medium for heating gases in a controlled and efficient manner.
Since the water is continuously reheated and circulated, the system minimizes energy waste and ensures a steady, reliable source of heat. This is especially beneficial for industries that require continuous gas flow, such as power plants or large manufacturing facilities.
2. Temperature Control
Hot water circulating vaporizers offer precise temperature control, which is essential when handling gases that require specific conditions for safe vaporization. For example, gases like ammonia or propane need to be heated to a precise temperature to ensure they vaporize correctly without risk of pressure buildup or incomplete vaporization.
By adjusting the temperature of the circulating water, operators can control the vaporization process with a high degree of accuracy, ensuring that the gas is produced safely and efficiently.
3. Safety
Safety is a critical factor in industries dealing with gases, especially in liquefied form, which is often stored under pressure. Using a hot water circulating vaporizer provides a safer alternative to direct heating methods, such as electric or flame-based vaporizers. With hot water, the heat is applied indirectly, reducing the risk of overheating, pressure build-up, or gas leaks.
Additionally, the consistent temperature control offered by these systems helps prevent dangerous fluctuations that could lead to accidents.
4. Reliability
Hot water circulating vaporizers are known for their reliability. Since water is a stable and abundant resource, the system can run for long periods with minimal maintenance. The components, such as the heat exchanger and circulation pumps, are designed to be durable, providing consistent performance over time.
In industries where downtime can be costly, having a reliable vaporization system ensures smooth operations and reduces the risk of costly interruptions.
Applications of Hot Water Circulating Vaporizers
These vaporizers are used in a wide range of industries that handle liquid gases. Some common applications include:
1. Energy and Power Generation
In power plants, natural gas or propane is often vaporized to fuel turbines and generators. Hot water circulating vaporizers ensure a steady supply of gas, helping maintain efficient energy production.
2. Chemical Processing
In chemical plants, many processes rely on gases like ammonia, chlorine, or carbon dioxide. These gases are often stored in liquid form for easier handling. Vaporizers help convert them back into gas for use in chemical reactions, ensuring smooth operation and precise control.
3. LNG Terminals
Liquefied Natural Gas (LNG) is transported in its liquid state and must be vaporized at terminals before it is delivered to homes and businesses. Hot water circulating vaporizers are often used at LNG facilities to efficiently convert the liquid back into gas.
4. Industrial Heating
Some industries use vaporized gases for heating large facilities or machinery. For example, propane or natural gas may be vaporized and used as fuel for industrial ovens, kilns, or heating systems.
Maintenance and Best Practices
While hot water circulating vaporizers are generally low-maintenance, regular inspections and servicing are important to ensure optimal performance. Here are some best practices:
· Check water levels regularly to prevent the system from running dry, which could damage the heat exchanger.
· Inspect the heat exchanger for any signs of corrosion or leaks, especially if the system uses chemically treated water.
· Monitor the temperature of the circulating water and the gas output to ensure the system is functioning correctly.
· Clean the water circulation system periodically to prevent buildup of sediment or scale, which can reduce efficiency.
Conclusion
Hot water circulating type vaporizers provide a safe, efficient, and reliable method for converting liquefied gases into their gaseous state. By using water as the heat source, these vaporizers offer energy efficiency, precise temperature control, and enhanced safety for a wide range of industrial applications.
Whether you’re in energy production, chemical processing, or industrial heating, understanding the functionality of these vaporizers can help you choose the right solution for your needs. With proper maintenance and careful operation, hot water circulating vaporizers ensure consistent performance and safe handling of gases in your facility.
