In industries where cryogenic liquids like LNG (Liquefied Natural Gas), LOX (Liquid Oxygen), and LIN (Liquid Nitrogen) are utilized, vaporizing these substances before they can be used is critical. Cryogenic gases, which are stored in their liquid form at very low temperatures, need to be converted into their gaseous form to be used in a wide range of industrial, medical, and scientific applications. The Water Bath Vaporizer is one of the most effective and commonly used methods for this process. This article will explore the concept, working principle, features, applications, advantages, and maintenance of Water Bath Vaporizers, along with safety considerations.
1. Understanding the Water Bath Vaporizer
What is a Water Bath Vaporizer?

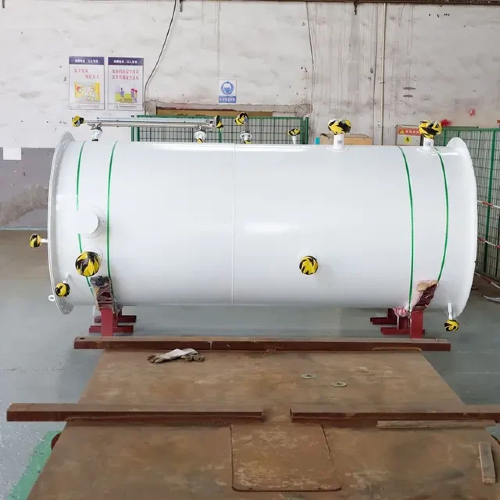

A Water Bath Vaporizer is a device used to convert cryogenic liquids into their gaseous form by utilizing heated water as the heat source. It works by passing the cryogenic liquid through a heat exchanger or coil that is submerged in a heated water bath. The heat from the water raises the temperature of the liquid, causing it to vaporize into gas.
The vaporization process is a crucial step in industries that require the continuous supply of cryogenic gases, such as natural gas processing, medical oxygen production, and industrial gas supply. The main benefit of using a Water Bath Vaporizer is its efficiency and reliability in generating large volumes of gas from cryogenic liquids, ensuring that the gas is available for immediate use.
Key Components of a Water Bath Vaporizer
The key components of a Water Bath Vaporizer include:
Water Tank: The tank holds water, which serves as the heating medium. It is large enough to ensure that the liquid remains in contact with the heat exchanger for an adequate amount of time to vaporize effectively.
Heat Exchanger: This is typically a coil or metal tubing through which the cryogenic liquid passes. The heat exchanger is submerged in the heated water, allowing it to absorb the heat from the surrounding water and vaporize the liquid inside.
Temperature Control System: This is the control mechanism that maintains the water bath’s temperature at a set range. It is essential to ensure that the liquid is vaporized at the right rate and pressure to avoid damage to the system and ensure safety.
Safety Valves and Pressure Relief Systems: These components are integrated to release excess pressure if the system detects any danger or malfunction. Safety is of utmost importance in cryogenic systems due to the extreme temperatures and pressures involved.
How Does a Water Bath Vaporizer Work?
The working principle of a Water Bath Vaporizer is straightforward but crucial for its efficiency. Here’s a breakdown of the process:
Cryogenic Liquid Inflow: The cryogenic liquid, such as LNG or liquid oxygen, is pumped into the vaporizer from a storage tank. These liquids are stored at extremely low temperatures and under pressure to maintain their liquid state.
Heat Transfer: The liquid flows through the heat exchanger, which is submerged in the heated water. The temperature of the water is controlled and maintained at an optimal level, ensuring efficient heat transfer.
Vaporization: As the cryogenic liquid absorbs heat from the water, its temperature increases, and it changes from a liquid to a gas. The heat transfer process is carefully managed to ensure the vaporization occurs steadily and efficiently.
Gas Outflow: The gas, now in a vaporized form, exits the vaporizer and is ready for use in industrial processes, medical applications, or fuel distribution.
This process ensures that cryogenic gases are available in the required volume and pressure, making Water Bath Vaporizers a popular choice for industries where consistent gas supply is critical.
2. Key Features of Water Bath Vaporizers
Temperature Control for Efficient Vaporization
Temperature control is a fundamental aspect of the Water Bath Vaporizer’s operation. The water bath temperature must be kept within a specific range to ensure the cryogenic liquid is vaporized at a consistent rate. Automated systems monitor the temperature and adjust it based on real-time feedback to optimize the vaporization process.
Water Bath Vaporizers can typically operate at temperatures between 40°C and 80°C. This temperature range ensures that the cryogenic liquid absorbs the necessary heat to convert into gas without excessive energy consumption or risk of overheating.
Flexibility in Fuel Types
One of the biggest advantages of Water Bath Vaporizers is their ability to handle a wide variety of cryogenic fluids. These include:
LNG (Liquefied Natural Gas)
LOX (Liquid Oxygen)
LAR (Liquid Argon)
LPG (Liquefied Petroleum Gas)
CO2 (Liquid Carbon Dioxide)
This flexibility makes them ideal for industries ranging from natural gas processing, chemical manufacturing, medical gas production, and even scientific research. The vaporizer can be tailored to meet the specific requirements of different gases, ensuring that the process is efficient and adaptable to varying operational needs.
Durable Materials and Construction
Water Bath Vaporizers are built to withstand the demanding conditions of cryogenic operations. They are made from carbon steel for general use and stainless steel for more reactive and corrosive environments.
The heat exchangers inside these vaporizers are often made from stainless steel or aluminum alloys, which are ideal for low-temperature applications. These materials ensure durability and reliable performance even in harsh operating environments.
Pressure and Flow Rate Versatility
Water Bath Vaporizers are highly adaptable to different operational requirements. These vaporizers can be designed to handle a wide range of flow rates and pressures. The typical flow rates range from 1,000 Nm³/h to 80,000 Nm³/h, depending on the industrial requirements.
Pressure ranges can go from as low as 0.4 MPa to as high as 60 MPa. The flexibility in pressure and flow ensures that the vaporizer can cater to small-scale applications, as well as large, high-demand industrial processes.
Parameter | Range |
Flow Rate | 1,000 – 80,000 Nm³/h |
Pressure | 0.4 MPa to 60 MPa |
Temperature | 40°C to 80°C |
These parameters allow Water Bath Vaporizers to operate in a wide variety of industries, from small fuel stations to large chemical plants.
3. Applications of Water Bath Vaporizers
Water Bath Vaporizers are widely used in industries that require reliable and efficient vaporization of cryogenic liquids. Below are some of the primary applications:
Industrial Applications
LNG Stations: Water Bath Vaporizers are used to vaporize LNG for natural gas distribution. They ensure that LNG is converted into gas at the required flow rates for fueling and power generation.
CNG Fueling Stations: These vaporizers play a crucial role in vaporizing LNG and converting it into compressed natural gas (CNG) for vehicle fueling.
Cryogenic Gas Suppliers: Industrial gas suppliers use Water Bath Vaporizers to convert gases like nitrogen, oxygen, and argon into their gaseous forms for distribution to various industries.
Medical Gas Supply
Medical Oxygen Systems: Water Bath Vaporizers are essential in medical oxygen production, where liquid oxygen must be vaporized to be used in hospitals, clinics, and healthcare facilities.
Chemical Manufacturing
Chemical Plants: Many chemical processes require cryogenic gases, and Water Bath Vaporizers are used to provide a continuous supply of vaporized gases like nitrogen or oxygen.
Food Processing and Cryogenics
Food Processing: Water Bath Vaporizers are used to vaporize CO2 for use in food preservation and cryogenic freezing, ensuring that the gases are available in their gaseous form for efficient processing.
Cryogenics: These vaporizers are also employed in research and scientific facilities, where precise control over the temperature and pressure of gases is required.
4. Advantages of Water Bath Vaporizers
Efficient Heat Transfer
Water Bath Vaporizers are known for their efficient heat transfer. Water is an excellent conductor of heat, making these systems more energy-efficient compared to other vaporizing methods. The heat from the water bath is transferred directly to the cryogenic liquid, causing it to vaporize effectively.
Safe and Reliable Operation
Water Bath Vaporizers are designed with safety in mind. Built-in safety features such as pressure relief valves and automated temperature control systems help ensure the system operates within safe parameters. These vaporizers are capable of handling high pressures and temperatures while maintaining safety standards.
Customization for Different Needs
Water Bath Vaporizers can be customized based on the specific needs of the industry. Depending on the application, the flow rate, pressure, and heating method can be adjusted. The system can be designed to handle electric heating, steam heating, or circulating hot water heating, depending on the available resources and operational requirements.
Environmental Benefits
The use of water as a heating medium makes Water Bath Vaporizers environmentally friendly. By reducing the amount of energy required for vaporization, these systems contribute to lower operational costs and sustainable energy use, which is increasingly important in today’s environmentally-conscious industrial landscape.
5. Maintenance and Safety Considerations
Routine Maintenance
Maintaining a Water Bath Vaporizer is essential for ensuring its longevity and efficiency. Regular maintenance tasks include:
Monitoring Water Levels: Ensuring that the water tank remains at optimal levels for efficient heat transfer.
Cleaning the Heat Exchanger: Preventing buildup of contaminants that could impede heat flow.
Checking Temperature and Pressure Systems: Ensuring that temperature and pressure control mechanisms are working properly.
Safety Features and Best Practices
Pressure Relief: Pressure relief valves are integrated into the system to release excess pressure, preventing damage to the system.
Temperature Control: The system is designed to maintain an optimal temperature range, preventing overheating.
Regular Inspections: Periodic inspections help ensure that all components of the vaporizer are functioning correctly and safely.
6. Conclusion
Water Bath Vaporizers are crucial for industries that rely on cryogenic gases, offering unmatched efficiency, flexibility, and reliability. Their customizable features make them ideal for various applications, ensuring safe and effective vaporization of different cryogenic gases. These vaporizers not only enhance operational efficiency but also contribute to a sustainable and cost-effective process, helping industries minimize energy consumption and reduce environmental impact.
At NOBLEST EQUIPMENT TECH LIMITED, we specialize in providing high-quality Water Bath Vaporizers that meet the specific needs of our clients. Our vaporizers are designed for durability and optimal performance, ensuring safe and continuous gas supply for your operations. Whether you're in the gas supply, medical, or chemical industry, our team is here to support you with tailored solutions.
For more information or to explore how our Water Bath Vaporizers can enhance your operations, don’t hesitate to get in touch with us. We are ready to assist you with the best solutions to meet your vaporization needs.
7. FAQ
1. What types of gases can a Water Bath Vaporizer handle?
Water Bath Vaporizers can handle various cryogenic gases, including LNG (Liquefied Natural Gas), LOX (Liquid Oxygen), LAR (Liquid Argon), LPG (Liquefied Petroleum Gas), and CO2 (Liquid Carbon Dioxide).
2. How does a Water Bath Vaporizer compare to other vaporizing methods?
Water Bath Vaporizers offer more efficient heat transfer than electric or air-heated vaporizers, making them more energy-efficient and cost-effective, especially for large-scale operations.
3. What maintenance is required for a Water Bath Vaporizer?
Routine maintenance involves checking water levels, cleaning the heat exchanger, and inspecting temperature and pressure control systems to ensure optimal operation.
4. How is the temperature controlled in a Water Bath Vaporizer?
Temperature is controlled through automated systems that adjust the water bath temperature to ensure consistent vaporization.
5. Can Water Bath Vaporizers be used in extreme weather conditions?
Yes, Water Bath Vaporizers can operate in various environments, but additional insulation or weatherproofing may be required for extreme temperatures.
