What Is Cryogenic Storage Tanks

Introduction

Industries worldwide require gases in massive quantities. Storing gases like nitrogen, oxygen, argon, or natural gas in their gaseous form takes up immense space. To solve this storage dilemma, we liquefy these gases by cooling them to extremely low temperatures. However, keeping these liquids from boiling away presents a massive engineering challenge. This is where a specialized cryogenic storage tank becomes indispensable.

A cryogenic storage tank is a highly engineered pressure vessel designed to store liquefied gases at temperatures below -150°C. These containers act like giant, industrial-strength vacuum flasks. They keep heat out so the super-cold liquids inside stay liquid. In this ultimate guide, we will break down the engineering behind these tanks, look at their critical components, explore safety systems, and help you choose the right design for your operations.

The Core Engineering Behind Cryogenic Storage Tanks

To understand a cryogenic storage tank, we must look at how it fights the laws of thermodynamics. Heat always moves from warm areas to cold areas. Because the outside air is hundreds of degrees warmer than the liquefied gas inside, heat constantly tries to force its way into the tank. Cryogenic engineers use advanced structural design to stop this heat transfer.

Double-Walled Construction and Vacuum Insulation

The primary defense against heat is the double-walled design of the industrial cryogenic storage tank. It is actually two tanks in one.

• The Inner Vessel: This internal tank holds the actual cryogenic liquid. It must withstand extreme cold without becoming brittle. Engineers typically build it from high-grade stainless steel or specific aluminum alloys. These metals maintain their strength and ductility at sub-zero temperatures.

• The Outer Vessel: This shell surrounds the inner vessel. It does not touch the cold liquid directly, so engineers usually build it from durable carbon steel. It protects the insulation system and holds the vacuum.

• The Vacuum Space: The gap between the inner and outer vessels is the secret to the tank's thermal performance. We pull a high vacuum in this space. Because vacuum contains no air molecules, it stops heat transfer via conduction and convection.

Managing the Thermodynamic Challenge of Heat Leak

Even with a high vacuum, some radiant heat can still pass through the gap. To block this radiation, we pack the vacuum space with high-performance insulation.

1. Perlite Insulation: For larger industrial tanks, we fill the vacuum space with expanded perlite powder. This lightweight, volcanic glass powder scatters heat radiation and adds structural stability.

2. Multi-Layer Insulation (MLI): Often called "super insulation," MLI consists of alternating layers of reflective aluminum foil and insulating fiberglass matting. It is incredibly effective for smaller, high-efficiency transportable vessels.

3. Low-Conductivity Support Struts: The inner vessel must hang inside the outer vessel without direct metal-to-metal contact. Engineers use thin, high-strength support rods made of materials like fiberglass-reinforced plastic to minimize physical heat pathways.

Common Liquefied Gases and Their Storage Requirements

Different industrial processes demand different cryogenic liquids. Each liquid has its own boiling point and physical properties. Therefore, a cryogenic storage tank must be tailored or rated for the specific gas it holds to prevent safety hazards and material degradation.

Liquid Nitrogen (LIN) and Liquid Oxygen (LOX) Storage

Liquid nitrogen and liquid oxygen are the most common fluids stored in these vessels.

• Liquid Nitrogen (LIN): Boiling at Minus 196°C, LIN is widely used for rapid freezing, biological preservation, and purging pipelines. Tanks storing LIN require exceptional insulation because the temperature difference between the liquid and the ambient air is immense.

• Liquid Oxygen (LOX): Boiling at Minus 183 degrees Celsius, LOX is vital for hospitals and steel manufacturing. LOX tanks require strict chemical cleanliness. Any organic material, like grease or oil, inside the tank can react explosively with high-purity oxygen.

• Liquid Argon (LAR): Stored at Minus 186 degrees Celsius, argon is essential for welding and metal fabrication. Because argon is very dense, LAR tanks require reinforced inner support structures to handle the heavy liquid weight.

Liquid Natural Gas (LNG) and Liquid Hydrogen (LH2) Demands

As the world shifts toward cleaner energy sources, LNG and liquid hydrogen storage demands are skyrocketing.

1. Liquid Natural Gas (LNG): Stored at roughly Minus 162 degrees Celsius, LNG reduces gaseous volume by 600 times. This makes shipping and storage highly economical. LNG tanks often feature specialized nickel-alloy inner vessels to handle the hydrocarbon environment.

2. Liquid Hydrogen (LH2): Hydrogen turns to liquid at an incredibly cold Minus 253 degrees Celsius. This is only twenty degrees above absolute zero! Storing LH2 requires the absolute highest grade of vacuum insulation, often combining MLI with active vapor-shield cooling to prevent rapid boil-off.

Key Components and Safety Features of a Cryogenic Storage Tank

A high-quality cryogenic liquid storage tank is much more than just a cold container. It is an active mechanical system containing valves, pipes, and safety instruments. These components work together to control pressure, manage fluid flow, and protect operators from potential hazards.

Pressure Relief Systems and Safety Valves

Cryogenic liquids expand dramatically when they warm up. If the pressure builds up without control, the tank could rupture. Every tank relies on a robust safety relief system.

• Dual Safety Relief Valves: Tanks use two independent relief valves connected by a three-way changeover valve. This design allows operators to service one safety valve while the other remains active, ensuring the tank is never left unprotected.

• Rupture Discs: This is the ultimate backup safety device. If the main relief valves fail or cannot keep up with a sudden pressure surge, a thin metal membrane bursts at a set pressure to vent the gas safely.

• Economizer Circuit: Instead of venting valuable gas when pressure rises, the economizer circuit diverts gaseous head-pressure from the top of the tank directly to the user line, saving gas and reducing waste.

Level and Pressure Monitoring Instruments

Operators must know exactly how much liquid is in the tank and what the pressure is at all times. Standard mechanical floats do not work in cryogenic conditions.

1. Differential Pressure (DP) Gauges: Because the liquid is boiling, standard level sensors fail. DP gauges measure the pressure difference between the bottom of the vessel (liquid weight plus gas pressure) and the top (gas pressure only). This difference tells us the exact liquid level.

2. Pressure Building Unit (PBU): When a user needs to draw liquid quickly, the tank pressure might drop too low to push the liquid out. The PBU takes a small amount of liquid, runs it through an external heat exchanger to vaporize it, and feeds the gas back into the top of the tank to raise the operating pressure.

3. Vacuum Thermocouple Gauge: This instrument monitors the quality of the vacuum in the insulation jacket. A drop in vacuum quality indicates an insulation leak, alerting operators to service the tank before catastrophic boil-off occurs.

Selecting the Right Cryogenic Storage Tank: Vertical vs. Horizontal Designs

When planning a facility installation, choosing the physical configuration of your cryogenic storage tank is a major decision. The choice between vertical and horizontal configurations depends on space, civil engineering costs, and operational needs.

Spatial Footprint and Installation Constraints

The physical space available at your facility often dictates the shape of the tank you choose.

• Vertical Cryogenic Tanks: These are the most common choice for industrial facilities. They have a small ground footprint, saving valuable real estate. They stand tall, which means they require a smaller concrete foundation pad.

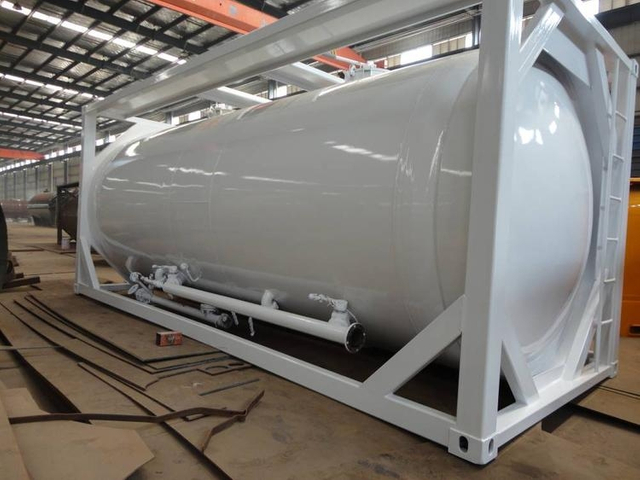

• Horizontal Cryogenic Tanks: These vessels are ideal when height restrictions exist, such as near airports or inside buildings with low ceilings. They spread the weight over a larger area, which can be beneficial if the soil bearing capacity is low.

• Wind and Seismic Loads: Vertical tanks act like sails in high winds and are more vulnerable to earthquake forces. In areas prone to hurricanes or earthquakes, horizontal tanks offer a more stable structural profile.

Capacity Needs and Operational Accessibility

The volume of liquid you need to store also influences the design.

1. Transportation Limitations: Very large tanks are easier to transport horizontally on highways. Once they arrive at the site, cranes lift vertical tanks onto their foundations, while horizontal tanks simply slide onto their concrete cradles.

2. Piping and Valve Access: Horizontal tanks allow ground-level access to all valves and monitoring equipment. Vertical tanks require climbing ladders or installing platforms to reach top-mounted instruments and safety relief lines.

3. Vaporization Efficiency: Vertical tanks naturally separate liquid and gas phases more efficiently due to gravity. This makes them highly reliable for continuous gas delivery applications.

Operating and Maintaining Cryogenic Tanks to Prevent Boil-Off

Cryogenic liquids are constantly in a state of dynamic equilibrium. Even the best cryogenic storage tank has a small amount of heat leak, which leads to slow vaporization. Proper operation and proactive maintenance are essential to minimize this product loss.

Managing Boil-Off Gas (BOG) and Pressure Control

Boil-off gas is the vapor generated when heat enters the cold liquid. Managing this gas is critical for both economy and safety.

• The Saturated Liquid State: Inside the tank, the liquid and vapor exist in a balanced state. If you draw gas from the top, the liquid boils to replace it, cooling the remaining liquid.

• Venting Management: If no gas is used for several days, pressure will rise to the safety setpoint. Operators must plan production schedules to consume gas regularly, avoiding the financial loss of venting product into the air.

• Cooling Systems Integration: Some advanced facilities use active refrigeration units or cryocoolers to reliquefy boil-off gas, returning it to the tank and achieving a zero-loss storage cycle.

Routine Inspection Protocols and Vacuum Integrity Tests

Preventative maintenance ensures your storage system operates safely and efficiently for decades.

1. Ice and Frost Inspection: Inspect the outer vessel regularly. Heavy frost or ice patches on the outer shell indicate a "cold spot." This is a clear sign that the internal vacuum or insulation has failed in that area.

2. Vacuum Level Verification: Use a portable vacuum meter to check the vacuum pressure yearly. If the vacuum pressure is rising, it means air or moisture is leaking into the jacket, which will ruin the insulation performance.

3. Safety Valve Recertification: Test and recalibrate safety relief valves every one to two years according to local safety regulations. Corrosive atmospheres can cause valve seats to stick, risking catastrophic pressure buildup.

Industry Applications: Who Relies on Cryogenic Storage Tanks?

From launching rockets to preserving life-saving vaccines, a high-performance cryogenic liquid storage tank plays a crucial role in modern science and industry. Let's look at the key sectors that depend on this advanced technology.

Medical, Healthcare, and Laboratory Research

The healthcare sector is one of the largest consumers of cryogenic liquids.

• Hospital Oxygen Supply: Large vertical LOX tanks supply high-purity oxygen to hospital patient rooms. These systems must be highly reliable, featuring redundant vaporizers to ensure a continuous gas supply.

• Cryopreservation: Research laboratories use liquid nitrogen tanks to freeze and store biological samples, stem cells, and vaccines for long periods without cellular degradation.

• Magnetic Resonance Imaging (MRI): MRI machines contain powerful superconducting magnets that must stay extremely cold to operate. Liquid helium stored in vacuum-jacketed dewars keeps these magnets running.

Heavy Industrial Manufacturing and Energy Sectors

In heavy industry, cryogenic liquids act as raw materials, fuel, and processing tools.

1. Metal Fabrication and Welding: Steel mills and fabrication shops use liquid argon and oxygen to achieve clean welds and high-temperature cuts.

2. Food and Beverage Freezing: Food processors inject liquid nitrogen into flash-freezers to lock in food freshness and moisture without creating large ice crystals that ruin texture.

3. Aerospace and Rocket Propulsion: Space exploration companies rely on massive cryogenic storage tanks to hold liquid hydrogen and liquid oxygen. These ultra-cold liquids serve as the high-energy propellants that lift rockets into orbit.

Conclusion

Understanding what a cryogenic storage tank is helps us appreciate the incredible engineering that makes modern industry possible. By combining double-walled construction, high-vacuum barriers, and state-of-the-art safety systems, these vessels store volatile, super-cold liquids safely for months at a time. Whether you need a compact vertical vessel for medical oxygen or a massive horizontal tank for industrial LNG storage, choosing the right insulation and structural design is key to preventing boil-off and maximizing your operational efficiency.

FAQ

1. How long can a cryogenic storage tank hold liquid before it boils away?

Modern tanks can hold cryogenic liquids for weeks or even months without significant loss, depending on the tank size and insulation quality. Larger tanks have a lower surface-area-to-volume ratio, which makes them much more efficient at preventing boil-off than smaller portable cylinders.

2. Can I use the same tank to store different cryogenic liquids?

Generally, no. Each cryogenic storage tank is engineered, cleaned, and rated for a specific gas. For example, a liquid nitrogen tank cannot be used for liquid oxygen unless it undergoes specialized solvent cleaning to remove all organic residues, as any oil contamination in an oxygen system poses a severe explosion hazard.

3. What causes a "cold spot" or frost on the outer shell of the tank?

A cold spot or frost formation on the outer carbon steel shell indicates a localized insulation failure. This usually happens because the vacuum has degraded or the internal support structures have shifted. If you notice frost, you should contact a technician immediately to test the vacuum level.

4. What is the average lifespan of an industrial cryogenic storage tank?

With proper maintenance, regular safety valve calibration, and consistent vacuum checks, a high-quality stainless-steel inner vessel tank can easily operate reliably for 20 to 30 years.

5. Why is liquid nitrogen stored under pressure if it is already cold?

While the cold temperature keeps the nitrogen liquid, some boil-off gas always generates over time. Storing the liquid under a controlled head pressure (typically 3 to 15 bar) keeps the remaining liquid stable and provides the necessary force to push the liquid out of the tank when the user opens the supply valve.
