Introduction
In the pursuit of cleaner and more sustainable energy, gasification technology has emerged as a viable solution to convert biomass and other carbonaceous materials into energy. Among the various gasification technologies, the steam heating water bath gasifier offers an efficient, environmentally friendly means to produce syngas, a mixture of carbon monoxide (CO), hydrogen (H₂), and methane (CH₄), which can be used for power generation, heating, and even as a precursor for biofuels. This article delves into the working principles of steam heating water bath gasifiers, their advantages, challenges, and the performance metrics that contribute to their effectiveness in producing clean energy.
Gasification Process Overview
Gasification is a thermochemical process that converts solid fuels, such as biomass or coal, into syngas by reacting the material at high temperatures (typically between 700°C and 1200°C) with a controlled amount of oxygen or steam. This process occurs in four key stages:
1. Drying: The fuel is first dried, removing moisture.
2. Pyrolysis: The fuel decomposes under heat to form volatile gases and solid char.
3. Oxidation: Oxygen or steam is introduced, reacting with the char to form CO, CO₂, and other gases.
4. Reduction: Remaining gases react to form a syngas mixture, with hydrogen and carbon monoxide as the primary products.
The steam heating water bath gasifier differs from traditional gasifiers in its use of steam heating within a water bath, which offers several performance advantages in terms of heat distribution, efficiency, and scalability.

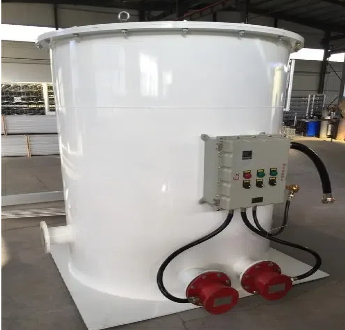

Steam Heating Water Bath Gasifier: Working Principle
A steam heating water bath gasifier operates by using steam as the primary heating medium. The system is submerged in a water bath, which helps regulate temperature and distributes heat evenly. The main components of this gasifier include:
· Fuel Feedstock: Biomass or other carbon-rich materials.
· Water Bath Chamber: A water-filled chamber where heat is transferred to the gasification chamber.
· Steam Generator: Produces steam, which is then circulated around the water bath.
· Gasification Chamber: Where the fuel undergoes the gasification process.
· Syngas Outlet: Where the generated syngas is collected for further use.
The steam heating system provides consistent heat transfer, preventing localized hot spots that can cause incomplete gasification or ash fusion. This uniform heating improves the overall efficiency of the gasification process and ensures better control over the syngas composition.
Advantages of Steam Heating Water Bath Gasifiers
1. Enhanced Thermal Efficiency
One of the main advantages of using steam heating in a water bath gasifier is improved thermal efficiency. By circulating steam around the water bath, the system can maintain a steady temperature range, minimizing energy losses. Additionally, steam serves as a reactant in the gasification process, enhancing hydrogen production through water-gas shift reactions, which are favorable for clean energy generation.
2. Improved Heat Distribution
The water bath surrounding the gasification chamber ensures even heat distribution, preventing the formation of hotspots. In traditional gasifiers, uneven heating can lead to incomplete fuel conversion, reducing syngas yield. The water bath gasifier mitigates this issue by providing a stable thermal environment, leading to more complete biomass conversion and higher syngas quality.
3. Syngas Quality and Composition
The quality and composition of the syngas produced by a gasifier play a critical role in its downstream applications, particularly in power generation and chemical synthesis. The use of steam in the water bath gasifier enhances the hydrogen content of the syngas, which is desirable for clean energy production. The water-gas shift reaction (CO + H₂O → CO₂ + H₂) is promoted in the presence of steam, increasing hydrogen yields while reducing carbon monoxide emissions.
4. Scalability and Flexibility
Steam heating water bath gasifiers are highly scalable, making them suitable for both small-scale and large-scale energy production. This flexibility allows for their use in a variety of settings, from rural biomass energy systems to large industrial applications. Additionally, they can process a wide range of feedstocks, including agricultural waste, forestry residues, and even municipal solid waste, enhancing their versatility.
5. Cleaner Energy Production
Gasifiers are inherently cleaner than traditional combustion methods because they operate in a low-oxygen environment, limiting the production of harmful pollutants such as nitrogen oxides (NOx) and sulfur oxides (SOx). The use of steam further enhances the environmental performance of the gasifier by reducing CO emissions and increasing hydrogen production, which can be used as a clean fuel or feedstock for chemical processes.
Performance Metrics for Steam Heating Water Bath Gasifiers
1. Thermal Efficiency
Thermal efficiency is a key performance metric for any gasification system. In steam heating water bath gasifiers, the thermal efficiency is influenced by the heat transfer between the steam and the gasification chamber, the uniformity of heat distribution, and the energy content of the syngas produced. Typically, thermal efficiencies range between 70% and 85%, depending on the design and operating conditions of the gasifier.
2. Syngas Yield and Composition
The syngas yield is measured by the volume of gas produced per unit of feedstock. A higher syngas yield indicates more effective fuel conversion. The composition of the syngas, particularly its hydrogen and carbon monoxide content, is also a critical factor in determining its suitability for different applications. Steam heating water bath gasifiers typically produce syngas with a higher hydrogen content, which is ideal for clean energy applications like hydrogen fuel cells.
3. Carbon Conversion Efficiency
This metric measures the percentage of carbon in the feedstock that is converted into gaseous products. A high carbon conversion efficiency indicates a more complete gasification process, reducing the amount of unreacted char and ash. Steam heating helps promote carbon conversion by enhancing the reaction kinetics through the water-gas shift reaction, which improves overall gasifier performance.
4. Environmental Impact
A key performance consideration is the environmental impact of the gasifier. This includes emissions of CO₂, CO, NOx, SOx, and particulate matter. Steam heating water bath gasifiers are designed to minimize these emissions, making them an environmentally friendly option for energy generation. Additionally, the higher hydrogen content of the syngas produced can be used to generate energy with near-zero emissions.
5. Operational Stability and Maintenance
The operational stability of the gasifier is also a critical factor, as stable operation ensures consistent syngas production and prevents downtime. The water bath design contributes to operational stability by regulating temperatures and preventing hot spots that could lead to equipment damage or incomplete gasification. Maintenance requirements are also reduced due to the lower operating temperatures and fewer moving parts in a steam heating water bath gasifier compared to traditional systems.
Future Prospects
Looking to the future, research and development efforts are focused on improving the efficiency of these systems, reducing costs, and integrating them with renewable energy sources like solar and wind power. The potential to use steam heating water bath gasifiers in hybrid systems, where waste heat from other industrial processes is used to generate steam, could further enhance their economic viability and environmental performance.
Conclusion
Steam heating water bath gasifiers represent a promising technology for clean energy production, offering significant advantages in terms of thermal efficiency, syngas quality, and environmental impact. By leveraging the unique properties of steam and water baths, these gasifiers can achieve higher hydrogen yields and more complete fuel conversion than traditional gasifiers. As research continues to optimize their design and performance, steam heating water bath gasifiers are poised to play a crucial role in the transition to a more sustainable energy future.
