How Do Cryogenic Storage Tanks Work

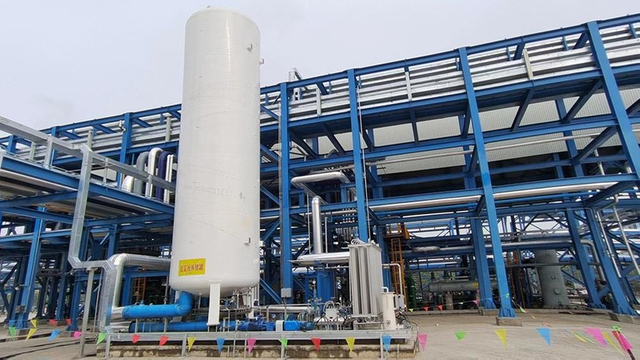

Introduction

Modern industries rely heavily on industrial gases like oxygen, nitrogen, argon, and natural gas. However, keeping these gases in their natural state takes up an enormous amount of physical space. To store and transport them efficiently, we cool them down until they condense into liquids. This process decreases their volume up to 800 times. However, keeping these liquids at temperatures far below absolute freezing presents a major engineering challenge. If they absorb even a small amount of heat from the surrounding environment, they will boil, expand rapidly, and escape into the atmosphere.

This is where a specialized cryogenic storage tank becomes vital. These vessels do not simply hold liquid; they actively fight the laws of thermodynamics. They keep cold liquids stable at temperatures below Minus 150 degrees Celsius (minus 238 degrees Fahrenheit) for weeks or months at a time. In this comprehensive guide, we will look under the metal hood to see exactly how these industrial giants function, the physics behind their insulation, and the systems that keep them running safely.

The Thermodynamic Principles of Cryogenic Insulation

To understand how a cryogenic storage tank works, we must first look at how heat travels. Thermodynamics teaches us that heat always moves from a warmer area to a cooler area. Because ambient air is hundreds of degrees warmer than the liquefied gas inside, heat constantly tries to force its way into the vessel. To prevent this, engineers must eliminate the three primary forms of heat transfer: conduction, convection, and radiation.

Eliminating Conduction and Convection via Vacuum Jackets

Conduction requires direct physical contact between molecules to transfer energy, while convection relies on the movement of fluids or air currents to carry heat.

• The Power of Nothing: To stop both conduction and convection, a cryogenic storage tank uses a double-walled construction design. We place a smaller inner tank inside a larger outer tank, leaving an empty space between them.

• Pulling a Vacuum: We use heavy-duty vacuum pumps to remove nearly all the air molecules from this empty space. By creating a high vacuum in this annular gap, we eliminate the physical medium that heat requires to travel.

• Molecular Isolation: Without air molecules to collide with each other, heat cannot conduct from the outer metal shell to the cold inner tank. Convection currents are also completely stopped because there is no air to circulate within the void.

Scattering Radiant Heat with Perlite and Multi-Layer Insulation (MLI)

While a vacuum stops conduction and convection, it cannot stop radiation. Radiant heat travels in electromagnetic waves, much like sunlight passing through the vacuum of space.

1. Expanded Perlite: For large, static industrial cryogenic storage tanks, we pack the vacuum space with a lightweight volcanic glass powder called expanded perlite. This white powder acts as a physical maze. It scatters and reflects incoming infrared light waves, keeping them from reaching the inner vessel.

2. Multi-Layer Insulation (MLI): For smaller or highly mobile vessels, we use MLI, which people often call "super insulation." This system consists of alternating layers of highly reflective aluminum foil and thin insulating fiberglass mats. The foil layers act as tiny mirrors that bounce radiant heat back toward the outside, while the fiberglass keeps the foil layers from touching and conducting heat directly.

3. Vapor-Shield Technology: In specialized liquid hydrogen setups, cold vapor escaping from the inner vessel passes through tubes woven into the insulation layers. This active cooling shield intercepts radiant heat before it can reach the main liquid core.

How the Double-Walled Vessel Maintains Structural and Thermal Separation

A cryogenic storage tank is essentially two distinct tanks built into one. Each shell has a completely different job to do, and they must work together without making direct structural contact that could ruin the insulation.

Material Selection for Inner and Outer Shells

The extreme cold of cryogenic liquids changes how metals behave. Standard structural steels become brittle and can shatter like glass when exposed to temperatures below -100 °C.

• The Ductile Inner Vessel: The inner tank holds the actual liquefied gas, so it must stay strong and flexible at deep-freeze temperatures. We build this vessel out of high-grade Austenitic stainless steel (such as Grade 304) or specific aluminum alloys. These materials maintain their mechanical strength and impact resistance even at -196 °C (liquid nitrogen) or -253 °C (liquid hydrogen).

• The Protective Outer Shell: The outer tank is exposed only to the outside atmosphere, meaning it does not touch the super-cold liquid. We build it using strong, economical carbon steel. Its main job is to act as a barrier, protecting the inner insulation and holding the crushing weight of the atmospheric pressure against the internal vacuum.

• Corrosion Resistance: The outer shell receives a high-durability epoxy coating. This prevents rust and weather damage, ensuring the vacuum envelope remains airtight for decades.

Thermal Isolating Support Systems

The inner vessel weighs thousands of kilograms when full of liquid. It must be suspended securely inside the outer shell, yet we cannot use thick steel beams to hold it because they would act as massive heat bridges.

1. Low-Conductivity Rods: We hang the inner vessel using thin support rods or straps made from fiberglass-reinforced plastic (FRP) or G-10 epoxy composites. These materials have incredible tensile strength but transfer almost no heat.

2. Compression Blocks: To prevent the inner tank from swaying during transport or seismic events, we install high-strength composite blocks at the bottom of the annular space. These block movement but prevent thermal transfer.

3. Expansion and Contraction Loops: When the inner vessel is filled with cold liquid, it shrinks significantly due to thermal contraction. We design the internal piping with flexible metal bellows and expansion loops. These stretch safely without breaking the airtight seals.

The Mechanics of Fluid Vaporization and Pressure Management

If you close all the valves on a cryogenic storage tank, the liquid inside will slowly absorb heat over time. This heat leak causes a small percentage of the liquid to vaporize, creating what we call boil-off gas (BOG). Managing this gas and using it to our advantage is a major part of how these tanks operate.

The Pressure Building Circuit (PBC) Operation

When a facility needs to draw liquid out of the cryogenic storage tank, it must overcome the resistance of the piping. If the pressure inside the tank is too low, the liquid will not flow. Instead of using mechanical pumps, which can add heat and fail in cold environments, we use a pressure building circuit.

• Liquid Gravity Feed: We open a valve at the bottom of the tank, allowing a small amount of liquid to flow into an external pressure building vaporizer. This device consists of aluminum tubes with large fins that absorb heat from the ambient air.

• Flash Expansion: As the liquid travels through these warm tubes, it boils and expands rapidly back into its gaseous state. For example, liquid nitrogen expands by a ratio of 694:1 as it turns to gas.

• Head-Space Pressurization: We direct this newly created gas back into the very top of the tank (the vapor head space). This gas pushes down on the liquid pool below, raising the vessel's internal pressure to the desired operating level.

The Economizer Circuit and Gas Conservation

When a tank sits idle for several days, the pressure in the vapor head space can rise too high. Simply venting this gas to the atmosphere is wasteful and expensive. We solve this problem using an economizer circuit.

1. Setting the Threshold: We install an adjustable back-pressure regulator valve in the economizer line. This valve is set to open at a pressure slightly below the main safety relief setting.

2. Prioritizing Gas Delivery: When the operator opens the main gas supply valve to run their factory, the system checks the tank pressure. If the pressure is high, the economizer circuit forces the system to draw gas directly from the top vapor space first.

3. Restoring Balance: By consuming the vapor gas instead of the liquid, the system naturally drops the tank pressure back to a safe level without venting a single cubic meter of product into the air.

+-------------------------------------------------------------+
|                Vapor Head Space (Economizer)                |
|                              |                              |
|                              v                              |
|                 [ Economizer Control Valve ]                 |
|                              |                              |
|                              v                              |
|   Liquid Pool  =======> [ PBU Vaporizer ] ====> User Line   |
| (Bottom Outflow)                                            |
+-------------------------------------------------------------+

How Safety Systems Prevent Over-Pressurization and Catastrophic Failure

Because cryogenic liquids can expand hundreds of times their volume when warmed, an unvented tank would eventually burst. Every industrial cryogenic storage tank relies on a multi-tiered safety system to make sure this never happens.

Redundant Safety Relief Valves and Changeover Valves

We cannot afford to let a safety valve fail. For this reason, we install dual safety relief valves on every vessel, using a specialized three-way changeover valve to manage them.

• The Changeover Mechanism: The changeover valve connects both safety relief valves to the tank, but it only allows one to be active at a time. This allows us to isolate, remove, and calibrate one safety valve while the other valve remains fully operational, keeping the tank protected 24/7.

• Spring-Loaded Precision: The active safety valve uses a calibrated spring. When the pressure inside the cryogenic storage tank exceeds the spring's force, the valve lifts, venting excess gas until the pressure drops back to a safe level, at which point the valve snaps shut.

• High-Flow Capacity: We size these valves to handle the maximum possible boil-off rate, such as in the event of a total vacuum loss where heat enters the tank rapidly.

Rupture Discs as Final Fail-Safe Barriers

If the primary safety relief valves fail to open or cannot keep up with a sudden, massive pressure surge, we need an absolute fail-safe.

1. The Sacrificial Membrane: A rupture disc is a thin, precisely manufactured metal membrane designed to burst at a specific pressure. We set this burst point slightly higher than the safety relief valve setting but well below the maximum design pressure of the tank.

2. No Moving Parts: Because a rupture disc has no moving parts, it cannot stick, rust, or fail to operate. When pressure reaches the limit, the disc bursts open, creating a massive escape path for the expanding gas.

3. Thermal Protection Rain Caps: We cover the outlet of the safety vents with simple plastic caps. These keep rain, snow, and nesting insects from blocking the pipe, but they pop off easily when gas begins to vent.

How Liquid Level and System Pressures Are Measured in Extreme Cold

Standard measurement tools like mechanical floats or electronic probes cannot survive the extreme cold and boiling turbulence inside a cryogenic storage tank. We must use clever physical principles to monitor the liquid levels accurately.

The Physics of Differential Pressure (DP) Level Gauging

To measure the liquid level without putting moving parts inside the tank, we use a differential pressure gauge. This system measures the weight of the liquid column.

• Two-Point Reading: We connect two small capillary tubes to the tank. One tube connects to the very bottom of the inner vessel (below the liquid line), and the other connects to the top (above the liquid line).

• Canceling the Head Pressure: The pressure at the bottom of the tank is equal to the weight of the liquid column plus the gas pressure in the head space (P_bottom = P_liquid + P_gas). The pressure at the top tube is simply the gas pressure (P_top = P_gas).

• The Math at Work: The differential pressure gauge subtracts the top reading from the bottom reading:

  Delta P = P_bottom - P_top

  Delta P = (P_liquid + P_gas) - P_gas

  Delta P = P_liquid

  This leaves us with the exact pressure exerted by the weight of the liquid column alone, which we calibrate to display the fluid volume.

Monitoring Vacuum Integrity and Temperature

The vacuum inside the outer jacket is the key to the tank's thermal performance. We must monitor this vacuum to ensure there are no microscopic leaks.

1. Thermocouple Vacuum Gauges: We install a permanent sensor port in the outer shell. This sensor measures vacuum down to the millitorr level. If the vacuum pressure begins to rise, it warns us of an insulation leak before the liquid starts boiling away.

2. Frost Line Inspection: When a vacuum fails, heat floods into the inner vessel. This causes the outer carbon steel shell to drop in temperature rapidly, resulting in thick frost or ice forming on the outside of the tank. Regular visual inspections are an easy way to verify tank health.

3. Liquid Temperature Sensors: We mount resistance temperature detectors (RTDs) on the plumbing lines. These help operators track the exact temperature of the liquid as it enters and leaves the system.

Operating Cycles: Filling, Storing, and Liquid Decanting Processes

An industrial cryogenic storage tank operates in three distinct phases. Controlling these phases correctly ensures we minimize product loss and maintain stable system pressures.

Top and Bottom Filling Mechanics

When a transport truck arrives to fill a cryogenic storage tank, the operator can pump the liquid into the top of the vessel, the bottom, or both simultaneously.

• The Top Fill Effect: Pumping liquid into the top of the tank sprays it through a ring into the vapor head space. This cold spray condenses the warm gas back into liquid, which drops the pressure inside the tank. This is useful when the tank pressure is too high.

• The Bottom Fill Effect: Pumping liquid into the bottom of the vessel does not disturb the vapor head space. Instead, it compresses the gas at the top, which raises the overall pressure of the tank.

• Balancing the Flow: Experienced operators adjust the valves to split the incoming liquid between the top and bottom lines. This allows them to maintain a stable, safe pressure inside the vessel during the entire transfer process.

Pressurized Liquid Decanting and External Vaporization

To deliver gas to a factory, the liquid must be drawn out, turned back into gas, and warmed up to room temperature.

1. Bottom Outflow: The pressure in the tank pushes the cold liquid out through the bottom extraction line.

2. Vacuum Insulated Pipes (VIP): To prevent the liquid from boiling inside the delivery pipes, we use vacuum-jacketed lines to transport the liquid from the tank to the application point.

3. Ambient Air Vaporizers: The liquid passes through a series of external heat exchangers. These use natural air currents to heat the cryogenic liquid, turning it back into a warm gas that is safe for industrial machinery or hospital pipelines to use.

Conclusion

A cryogenic storage tank is a remarkable feat of mechanical engineering. By combining double-walled construction, high-vacuum barriers, and clever thermodynamic circuits like the pressure builder and economizer, these vessels store volatile, super-cold liquids safely for long periods of time. Understanding how these systems work allows industrial operators to run their facilities safely, avoid product loss, and maintain steady, reliable gas delivery.
